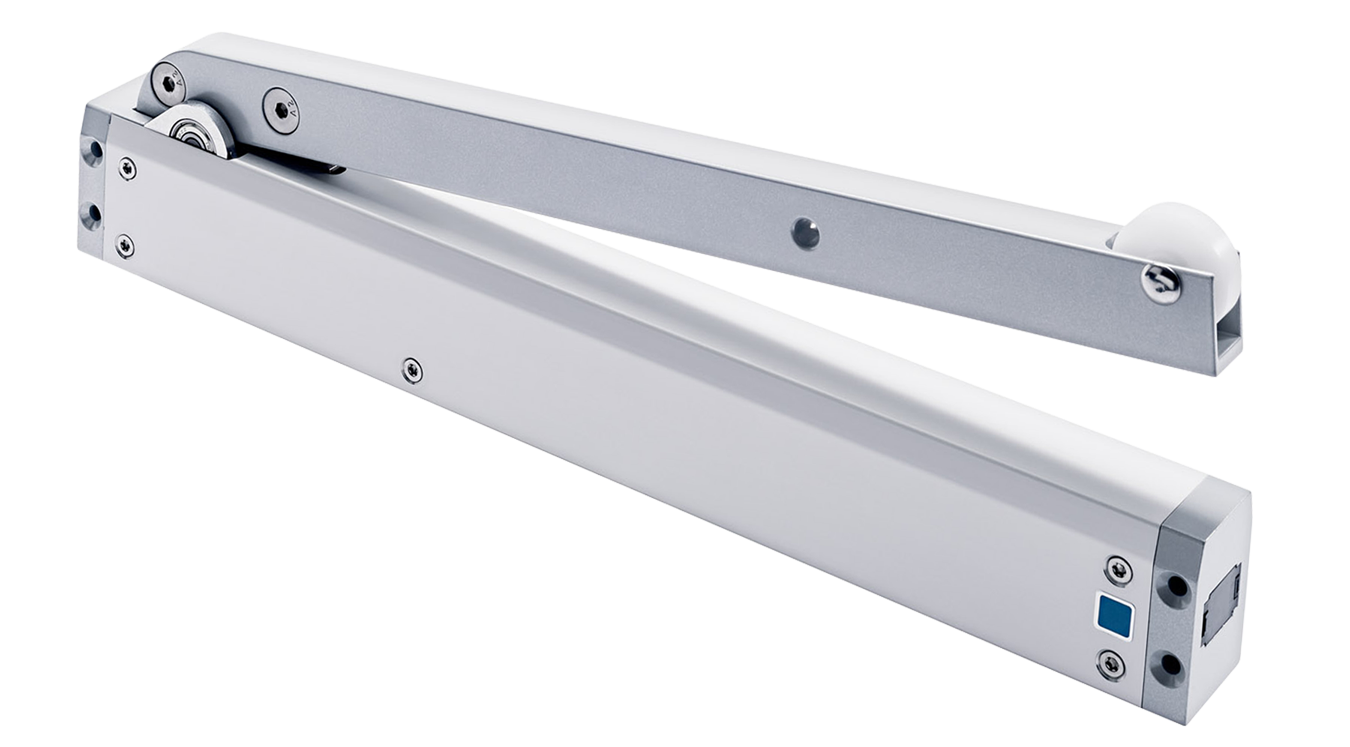

FTA 600 Door Drive

Vent Trade FTA 600 door drive actuator AOV smoke control hold-open release
FTA 600 Door Drive - Image 2
FTA 600 Door Drive - Image 3

FTA Folding Arm Door Drive

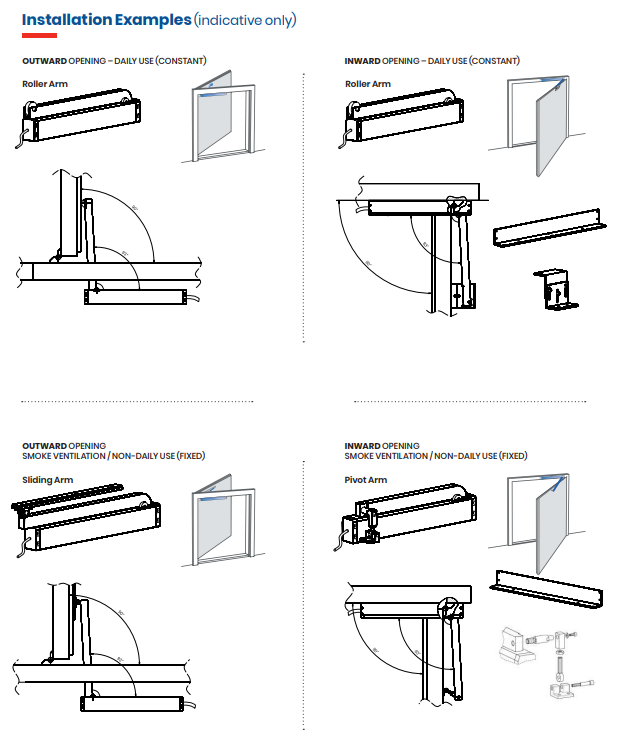

  • Suitable for inward and outward opening doors
  • Powerful drive with high torque
  • 0° - 93° opening angle (as standard)
  • EN 12101-2 Certified
  • Maximum Load: 600kg
  • Compatibility: 400 Series • 500-CB • 1000-G

Price range: £1,260.87 through £1,281.54

For orders of 5+ units, please contact us or click the button below.

Require more than 5?

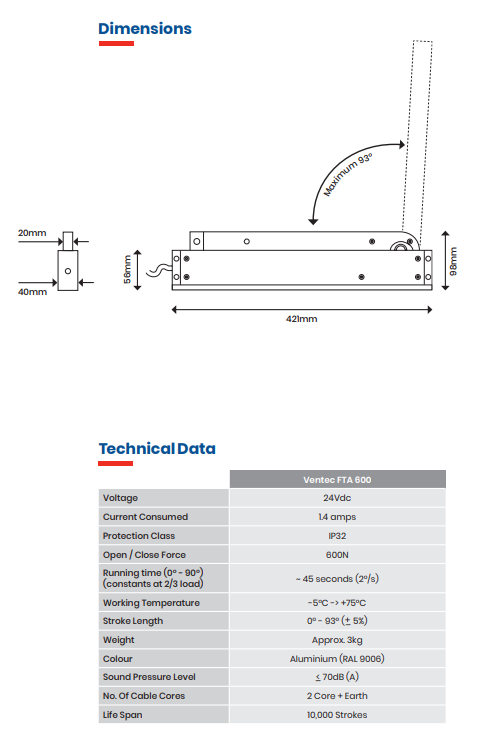

The 24Vdc Ventec FTA 600 is a folding arm actuator that is used for inward or outward opening doors. Depending on variant installed the actuator can allow daily access (constant) or only allow the door to be opened for smoke ventilation (fixed).It has a rectangular aluminium housing and a laterally positioned folding arm. When closed, the arm lies flat against the housing. It opens to a maximum angle 93° (determined by the distance between the pivot points of the folding arm and the hinges) but can be programmed (at the factory) to required opening angle. Opening speed is approximately 2° per second, therefore to fully open is about 45 seconds.It has an inbuilt potential-free contact (VFC) which can been used to release a magnetic door retainer. They can also be programmed (at the factory) so that multiple drives can be synchronised to open together.

  • PRODUCT VIDEO
  • INSTALLATION VIDEO
