Mardome Smoke Vent

Mardome Smoke Vent

EN 12101-2
24V electrical actuator opens up to 140 degrees in less than 60 seconds.
smoke and comfort ventilation.
Constant separation of glazing skins across full width of dome including fixing flange on part L compliant triple skin glazing options. This avoids cold spots and minimises the risk of condensation.
Suitable for flat roof applications with a pitch of typically 0O -15O

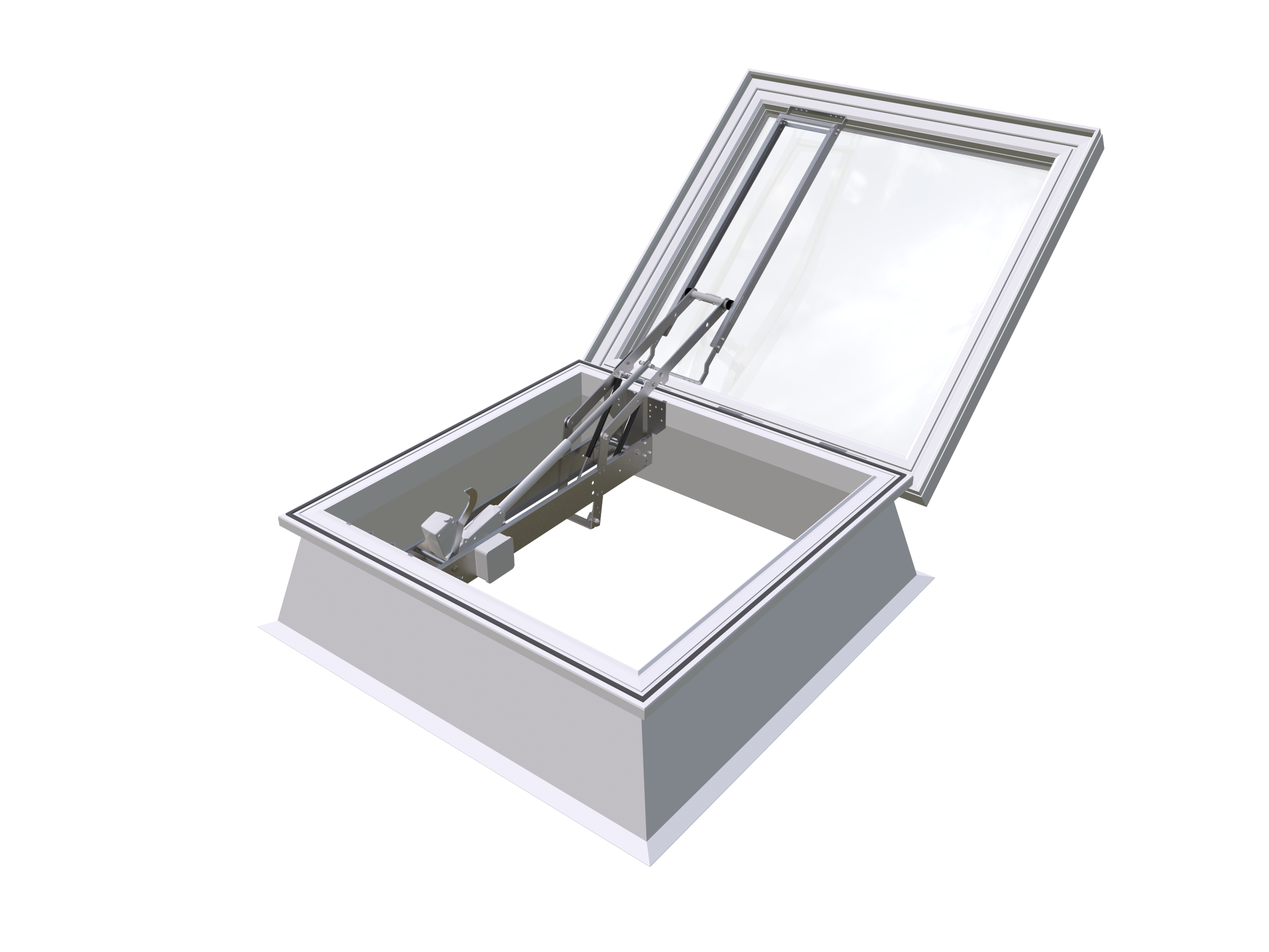

Mardome Smoke Vent Rooflights have clean, white interior surfaces with a central or offset internal actuator.

Price range: £1,551.15 through £3,163.86

Size

Glazing

Shape

Tint

Kerb

Actuator Position

Clear

For orders of 5+ units, please contact us or click the button below.

Brett Martin Daylight Systems Mardome Smoke Vents are individual polycarbonate dome rooflights intended for installation on flat roofs of all modern building types to provide natural smoke and heat exhaust ventilation and comfort ventilation.

Mardome Smoke Vents are designed and manufactured under an ISO9001 approved quality system. These products are fully tested and certified in accordance with EN12101-2 : 2003.

Design Features
– Design fully tested and certified in accordance with EN12101-2 : 2003.
– Factory fitted 24V electrical actuator opens up to 140 degrees in less than 60 seconds.
– Provides smoke and comfort ventilation.
– Contemporary low rise profile (dome and pyramid options).
– Constant separation of glazing skins across full width of dome including fixing flange on part L compliant triple skin
glazing options. This avoids cold spots and minimises the risk of condensation.
– Options to satisfy requirements for light transmission, and thermal performance.

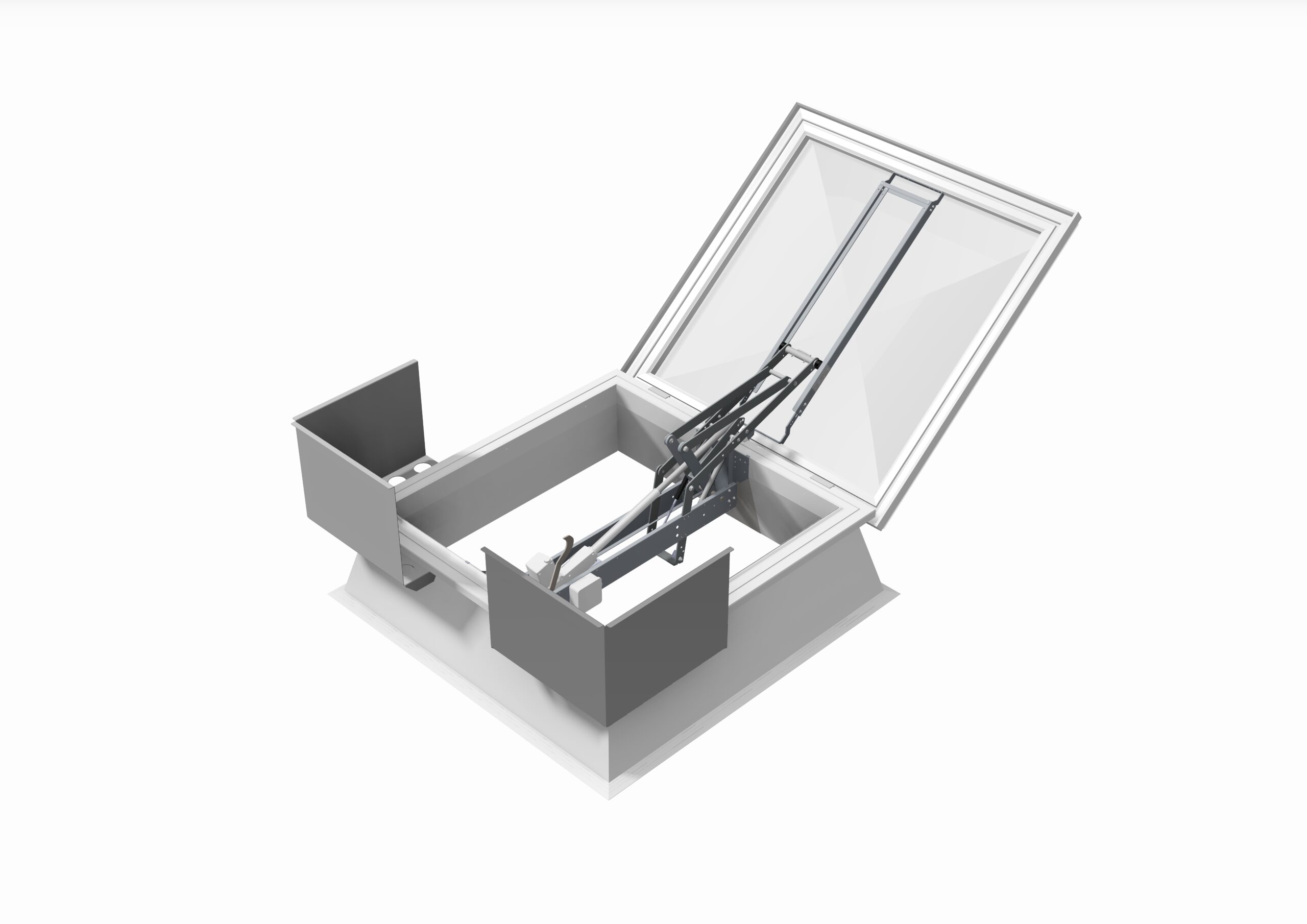

– Optional accessories include wind deflectors for improved aerodynamic area, and control panel system.
– Suitable for flat roof applications with a pitch of typically 0O-15O

Appearance
Mardome Smoke Vent Rooflights have clean, white interior surfaces with a central or offset internal actuator. The
unobtrusive external appearance also complements the surrounding environment. The low profile dome improves the
aesthetics and also the clarity of light.

Composition
The outer dome of Mardome Smoke Vent is manufactured from 3mm impact resistant Marlon FSX polycarbonate sheet
which is co-extruded with a UV protective coating to both sides. The inner domes are manufactured from 2mm impact
resistant Marlon FS polycarbonate sheeting for double and triple skin options. The kerb and hinge frames are
manufactured from Lead & Cadmium free un-plasticised PVC rigid multi-wall extruded profile. Internal finish of all
framework is gloss white. The 300mm sloped kerb is lined with sheet metal in white finish. The actuators are all zinc plated
steel.

The polycarbonate, PVC-U, steel and aluminium which comprise the product can be recycled at the end of useful product
life.
